Authentic Adventure: Inside the New Truck Sliding Window Series

Technical Overview: The Sliding Window Graphic Series

The Truck Sliding Window Series consists of precision-cut vinyl graphics engineered for application on the center sliding glass panels of modern pickup trucks. This series utilizes industrial-grade materials designed to withstand environmental stressors encountered during off-road and highway operations. Each design is trail-tested to ensure structural integrity and visual clarity under diverse conditions.

Core Material Specifications

All decals in this series are manufactured using Oracal 651 Intermediate Calendered PVC film. This material selection is based on specific performance metrics required for automotive glass applications:

• Film Thickness: 2.5 mil (0.064 mm). This thickness provides a balance between durability and flexibility, allowing the vinyl to conform to the flat surface of sliding glass panels without excessive bulk.
• Adhesive Type: Clear, solvent-based, permanent polyacrylate adhesive. This chemical composition ensures a high-strength bond that remains stable when exposed to cleaning agents and temperature fluctuations.
• Outdoor Durability: Rated for up to 6 years of vertical outdoor exposure. Performance may vary based on UV intensity and environmental pollutants.
• Temperature Resistance: Adhered to aluminum, -40°F to +176°F, no variation.
• Minimum Application Temperature: 46°F (8°C).
• Finish: High-gloss or matte options depending on the specific design variant.

Design Catalog and Functional Utility

The series includes four primary designs, each developed to maintain high contrast and detail while adhering to the geometric constraints of truck sliding windows.

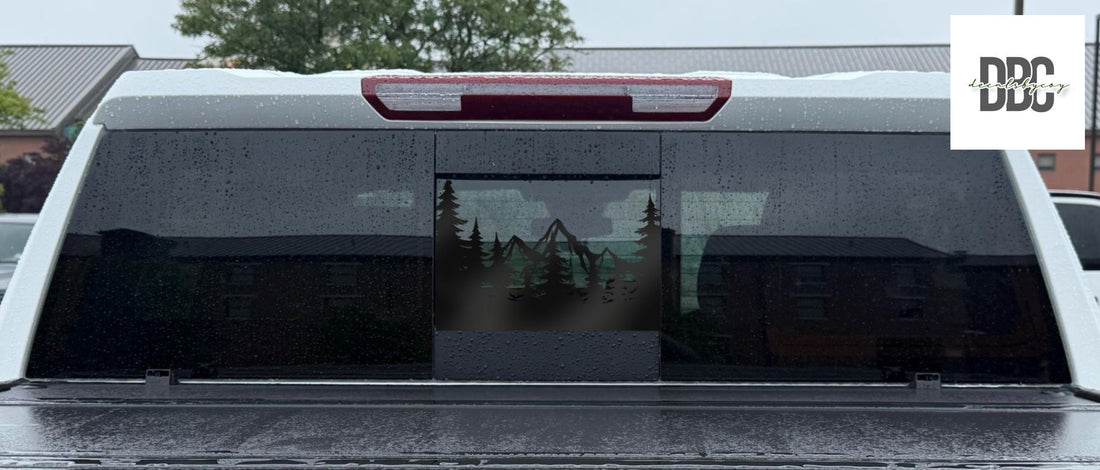

1. Mountain Truck Sliding Window Decal

This design features a high-contrast mountain silhouette. It is optimized for enthusiasts focusing on adventure and outdoor environments. The geometric lines are cut to ensure maximum surface area contact with the glass, reducing the risk of edge lifting during window operation.

• Recommended Placement: Centered on the sliding glass panel.
• Visual Property: Opaque vinyl creates a sharp silhouette against the glass.

2. Oni Demon Truck Decal

The Oni Demon design provides an aggressive aesthetic profile. It utilizes intricate linework that requires precise weeding during production.

• Design Complexity: High detail density.
• Compatibility: Fits [Tacoma], Fits [Tundra], Fits [F-150].
• Tactical Use: Enhances vehicle identity for customized rigs.

3. Topo Map Truck Decal

The topographic map series replicates real-world terrain contours. The design uses thin, continuous lines that provide a sophisticated, technical appearance without significantly obstructing rearward visibility through the gaps in the lines.

• Material Utilization: Efficient use of negative space.
• Aesthetic Profile: Technical, map-based graphic for overland-style builds.

4. American Flag Truck Decal

This design follows standard flag proportions, adapted for the vertical and horizontal dimensions of most truck sliding windows.

• Configuration: 50-star field with standard horizontal stripes.
• Visibility: Moderate obstruction; users must account for the opaque nature of the vinyl.

Precision Measurement Protocol

Accuracy in measurement is critical to ensure the decal does not interfere with the window's sliding mechanism or weather seals. Follow these steps to determine the correct dimensions for your vehicle.

Step 1: Identify Window Type

• Manual Slider: Typically a 3-piece or 4-piece configuration where the center glass slides horizontally.
• Power Slider: A single piece of glass that slides vertically or a center panel that retracts electronically.

Step 2: Calculate Usable Glass Area

• Measure the visible glass only. Do not include the rubber gaskets, plastic trim, or metal frames.
• Record the height from the top seal to the bottom seal.
• Record the width from the left seal to the right seal of the sliding panel specifically.

Step 3: Define Clearance Buffers

• Subtract 0.25 inches (6.35 mm) from both the measured height and width.
• This buffer prevents the vinyl edges from contacting the window seals during movement. Edge contact with seals is the primary cause of premature peeling and mechanical interference.

Installation Protocol

The following procedure outlines the "Dry Application Method," which is recommended for Oracal 651 on glass surfaces to ensure immediate adhesion and long-term stability.

Phase 1: Surface Preparation

1. Chemical Cleaning: Apply a 70% Isopropyl Alcohol solution to the glass. Use a lint-free microfiber cloth to remove all oils, waxes, and environmental contaminants.
2. Mechanical Cleaning: Use a glass scraper or clay bar if the surface feels textured or has embedded debris.
3. Drying: Ensure the surface is completely dry. Any residual moisture will compromise the solvent-based adhesive.

Phase 2: Alignment and Hinge Method

1. Positioning: Place the decal (with backing and transfer tape intact) on the window. Use low-tack painter's tape to hold the decal in place.
2. Verification: Use a level or tape measure to ensure the graphic is centered and parallel to the window frame.
3. Center Hinge: Place a strip of painter's tape vertically across the center of the decal, securing it to the window glass above and below the graphic.

Phase 3: Application

1. Backing Removal: Peel the backing paper away from one half of the decal, cutting it off at the hinge.
2. Squeegee Technique: Hold the decal at a 45-degree angle. Starting from the center hinge, use a felt-edge squeegee to apply the vinyl to the glass using overlapping horizontal strokes.
3. Repeat: Remove the center hinge tape, peel the remaining backing paper, and repeat the squeegee process for the second half.

Phase 4: Finalization

1. Squeegee Pressure: Apply firm pressure over the entire graphic to activate the pressure-sensitive adhesive.
2. Transfer Tape Removal: Peel the transfer tape back slowly at a 180-degree angle (flat against itself). If any vinyl lifts, re-squeegee that section and wait 5 minutes before attempting again.
3. Post-Heat (Optional): Use a heat gun on a low setting (approx. 200°F) to gently warm the vinyl, then press down any edges to ensure a permanent bond.

Maintenance and Environmental Considerations

To maximize the lifespan of the Truck Sliding Window Series, adhere to the following maintenance guidelines:

• Curing Period: Do not wash the vehicle or operate the sliding window for 48 to 72 hours following installation. This allows the adhesive to reach maximum bond strength.
• Cleaning Agents: Use pH-neutral car soaps. Avoid cleaners containing ammonia, citrus oils, or abrasive particles.
• Mechanical Car Washes: Avoid high-pressure automated car washes that use stiff brushes, as these can catch the edges of the vinyl. Hand washing is the preferred method for decal longevity.
• Snow and Ice: Do not use an ice scraper directly over the vinyl. Use a defroster or lukewarm water to melt ice before gently wiping.

Troubleshooting Common Issues

Bubbles

• Cause: Trapped air or outgassing from the glass surface.
• Solution: Small bubbles often dissipate within 2-3 weeks as the vinyl "breathes." For larger bubbles, use a fine needle to puncture the edge of the bubble and push the air out with a finger.

Edge Lifting

• Cause: Contamination during install or friction against window seals.
• Solution: Trim the lifted section with a sharp precision knife. Do not attempt to re-glue lifted vinyl.

Fading

• Cause: Excessive UV exposure.
• Solution: Apply a vinyl-safe UV protectant periodically to maintain color density.

Vehicle Compatibility Notes

While these decals are designed as universal fitments for most mid-size and full-size trucks, specific verification is required for the following models:

• Toyota Tacoma: Fits [2005-2023] models with manual or power sliders.
• Toyota Tundra: Fits [2007-2024] models. Note that full-width power vertical sliders require the decal to be centered to avoid side-track interference.
• Ford F-150: Compatible with [2015-2024] power sliding rear windows.
• Chevrolet Silverado / GMC Sierra: Compatible with standard 3-piece sliding configurations.

This product is not affiliated with, sponsored by, or endorsed by Toyota, Ford, Chevrolet, or GMC.
